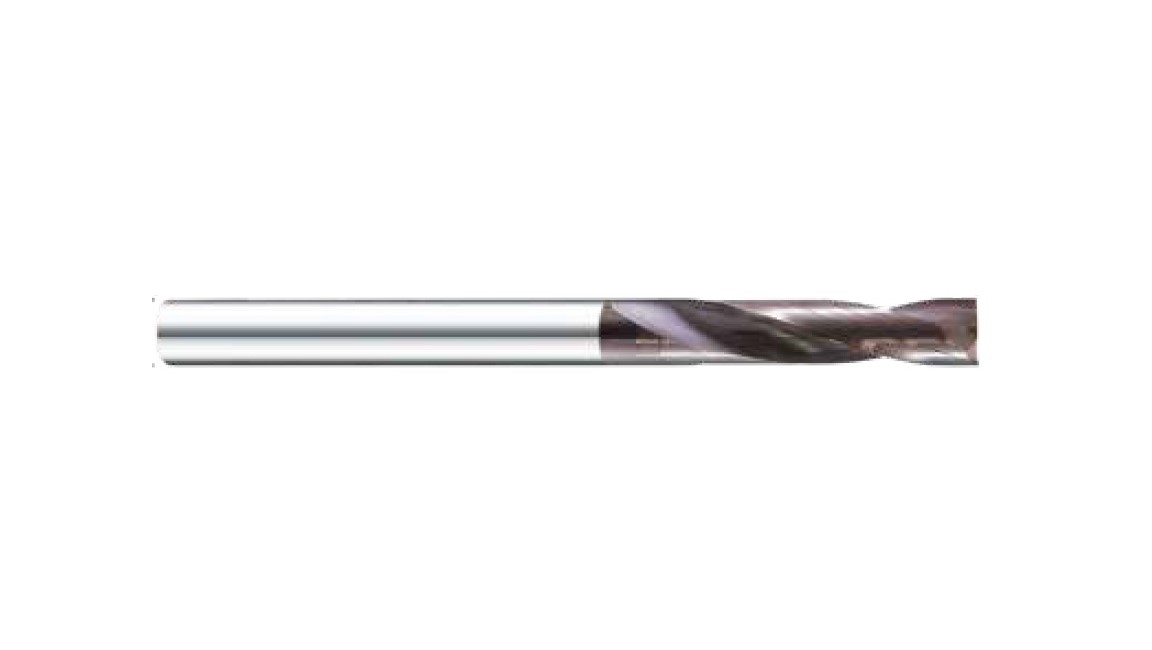

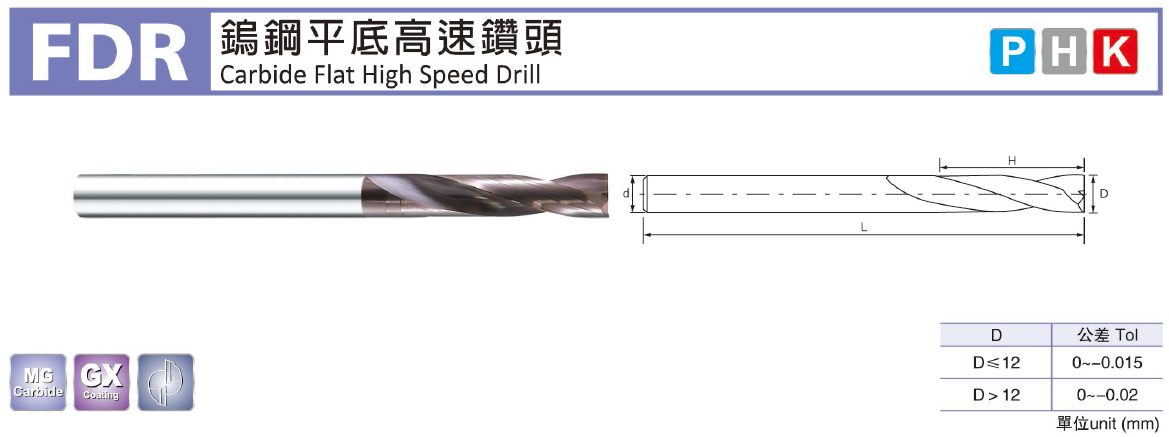

鎢鋼平底高速鑽頭
| 型號-外徑 Type No. |
外徑 D |
刃長 H |
柄徑 d |
全長 L |
| FDR-010 | 1.0 | 3.3 | 3 | 50 |
| FDR-011 | 1.1 | 3.5 | 3 | 50 |
| FDR-012 | 1.2 | 3.9 | 3 | 50 |
| FDR-013 | 1.3 | 4.2 | 3 | 50 |
| FDR-014 | 1.4 | 4.6 | 3 | 50 |
| FDR-015 | 1.5 | 4.9 | 3 | 50 |
| FDR-016 | 1.6 | 5.2 | 3 | 50 |
| FDR-017 | 1.7 | 5.5 | 3 | 50 |
| FDR-018 | 1.8 | 5.8 | 3 | 50 |
| FDR-019 | 1.9 | 6.2 | 3 | 50 |
| FDR-020 | 2.0 | 9 | 4 | 50 |
| FDR-021 | 2.1 | 11 | 4 | 50 |
| FDR-022 | 2.2 | 11 | 4 | 50 |
| FDR-023 | 2.3 | 11 | 4 | 50 |
| FDR-024 | 2.4 | 12 | 4 | 50 |
| FDR-025 | 2.5 | 12 | 4 | 50 |
| FDR-026 | 2.6 | 12 | 4 | 50 |
| FDR-027 | 2.7 | 14 | 4 | 50 |
| FDR-028 | 2.8 | 14 | 4 | 50 |
| FDR-029 | 2.9 | 14 | 4 | 50 |
| FDR-030 | 3.0 | 14 | 6 | 60 |
| FDR-031 | 3.1 | 15 | 6 | 60 |
| FDR-032 | 3.2 | 15 | 6 | 60 |
| FDR-033 | 3.3 | 15 | 6 | 60 |
| FDR-034 | 3.4 | 16 | 6 | 60 |
| FDR-035 | 3.5 | 16 | 6 | 60 |
| FDR-036 | 3.6 | 16 | 6 | 60 |
| FDR-037 | 3.7 | 18 | 6 | 60 |
| FDR-038 | 3.8 | 18 | 6 | 60 |
| FDR-039 | 3.9 | 18 | 6 | 60 |
| FDR-040 | 4.0 | 18 | 6 | 60 |
| FDR-041 | 4.1 | 19 | 6 | 60 |
| FDR-042 | 4.2 | 19 | 6 | 60 |
| FDR-043 | 4.3 | 19 | 6 | 60 |
| FDR-044 | 4.4 | 21 | 6 | 60 |
| FDR-045 | 4.5 | 21 | 6 | 60 |
| FDR-046 | 4.6 | 21 | 6 | 60 |
| FDR-047 | 4.7 | 22 | 6 | 60 |
| FDR-048 | 4.8 | 22 | 6 | 60 |
| FDR-049 | 4.9 | 22 | 6 | 60 |
| FDR-050 | 5.0 | 23 | 6 | 75 |
| FDR-051 | 5.1 | 24 | 6 | 75 |
| FDR-052 | 5.2 | 24 | 6 | 75 |
| FDR-053 | 5.3 | 24 | 6 | 75 |
| FDR-054 | 5.4 | 25 | 6 | 75 |
| FDR-055 | 5.5 | 25 | 6 | 75 |
| FDR-056 | 5.6 | 25 | 6 | 75 |
| FDR-057 | 5.7 | 27 | 6 | 75 |
| FDR-058 | 5.8 | 27 | 6 | 75 |
| FDR-059 | 5.9 | 27 | 6 | 75 |
| FDR-060 | 6.0 | 27 | 6 | 75 |
| FDR-061 | 6.1 | 28 | 8 | 75 |
| FDR-062 | 6.2 | 28 | 8 | 75 |
| FDR-063 | 6.3 | 28 | 8 | 75 |
| FDR-064 | 6.4 | 30 | 8 | 75 |
| FDR-065 | 6.5 | 30 | 8 | 75 |
| FDR-066 | 6.6 | 30 | 8 | 75 |
| FDR-067 | 6.7 | 31 | 8 | 75 |
| FDR-068 | 6.8 | 31 | 8 | 75 |
| FDR-069 | 6.9 | 31 | 8 | 75 |
| FDR-070 | 7.0 | 32 | 8 | 75 |
| FDR-071 | 7.1 | 33 | 8 | 75 |
| FDR-072 | 7.2 | 33 | 8 | 75 |
| FDR-073 | 7.3 | 33 | 8 | 75 |
| FDR-074 | 7.4 | 34 | 8 | 75 |
| FDR-075 | 7.5 | 34 | 8 | 75 |
| FDR-076 | 7.6 | 34 | 8 | 75 |
| FDR-077 | 7.7 | 36 | 8 | 75 |
| FDR-078 | 7.8 | 36 | 8 | 80 |
| FDR-079 | 7.9 | 36 | 8 | 80 |
| FDR-080 | 8.0 | 36 | 8 | 80 |
| FDR-081 | 8.1 | 37 | 10 | 100 |
| FDR-082 | 8.2 | 37 | 10 | 100 |
| FDR-083 | 8.3 | 37 | 10 | 100 |
| FDR-084 | 8.4 | 39 | 10 | 100 |
| FDR-085 | 8.5 | 39 | 10 | 100 |
| FDR-086 | 8.6 | 39 | 10 | 100 |
| FDR-087 | 8.7 | 40 | 10 | 100 |
| FDR-088 | 8.8 | 40 | 10 | 100 |
| FDR-089 | 8.9 | 40 | 10 | 100 |
| FDR-090 | 9.0 | 41 | 10 | 100 |
| FDR-091 | 9.1 | 42 | 10 | 100 |
| FDR-092 | 9.2 | 42 | 10 | 100 |
| FDR-093 | 9.3 | 42 | 10 | 100 |
| FDR-094 | 9.4 | 43 | 10 | 100 |
| FDR-095 | 9.5 | 43 | 10 | 100 |
| FDR-096 | 9.6 | 43 | 10 | 100 |
| FDR-097 | 9.7 | 45 | 10 | 100 |
| FDR-098 | 9.8 | 45 | 10 | 100 |
| FDR-099 | 9.9 | 45 | 10 | 100 |
| FDR-100 | 10.0 | 45 | 10 | 100 |
| FDR-101 | 10.1 | 46 | 12 | 100 |
| FDR-102 | 10.2 | 46 | 12 | 100 |
| FDR-103 | 10.3 | 46 | 12 | 100 |
| FDR-104 | 10.4 | 48 | 12 | 100 |
| FDR-105 | 10.5 | 48 | 12 | 100 |
| FDR-106 | 10.6 | 48 | 12 | 100 |
| FDR-107 | 10.7 | 49 | 12 | 100 |
| FDR-108 | 10.8 | 49 | 12 | 100 |
| FDR-109 | 10.9 | 49 | 12 | 100 |
| FDR-110 | 11.0 | 50 | 12 | 100 |
| FDR-111 | 11.1 | 51 | 12 | 100 |
| FDR-112 | 11.2 | 51 | 12 | 100 |
| FDR-113 | 11.3 | 51 | 12 | 100 |
| FDR-114 | 11.4 | 52 | 12 | 100 |
| FDR-115 | 11.5 | 52 | 12 | 100 |
| FDR-116 | 11.6 | 52 | 12 | 100 |
| FDR-117 | 11.7 | 54 | 12 | 100 |
| FDR-118 | 11.8 | 54 | 12 | 100 |
| FDR-119 | 11.9 | 54 | 12 | 100 |
| FDR-120 | 12.0 | 54 | 12 | 100 |
